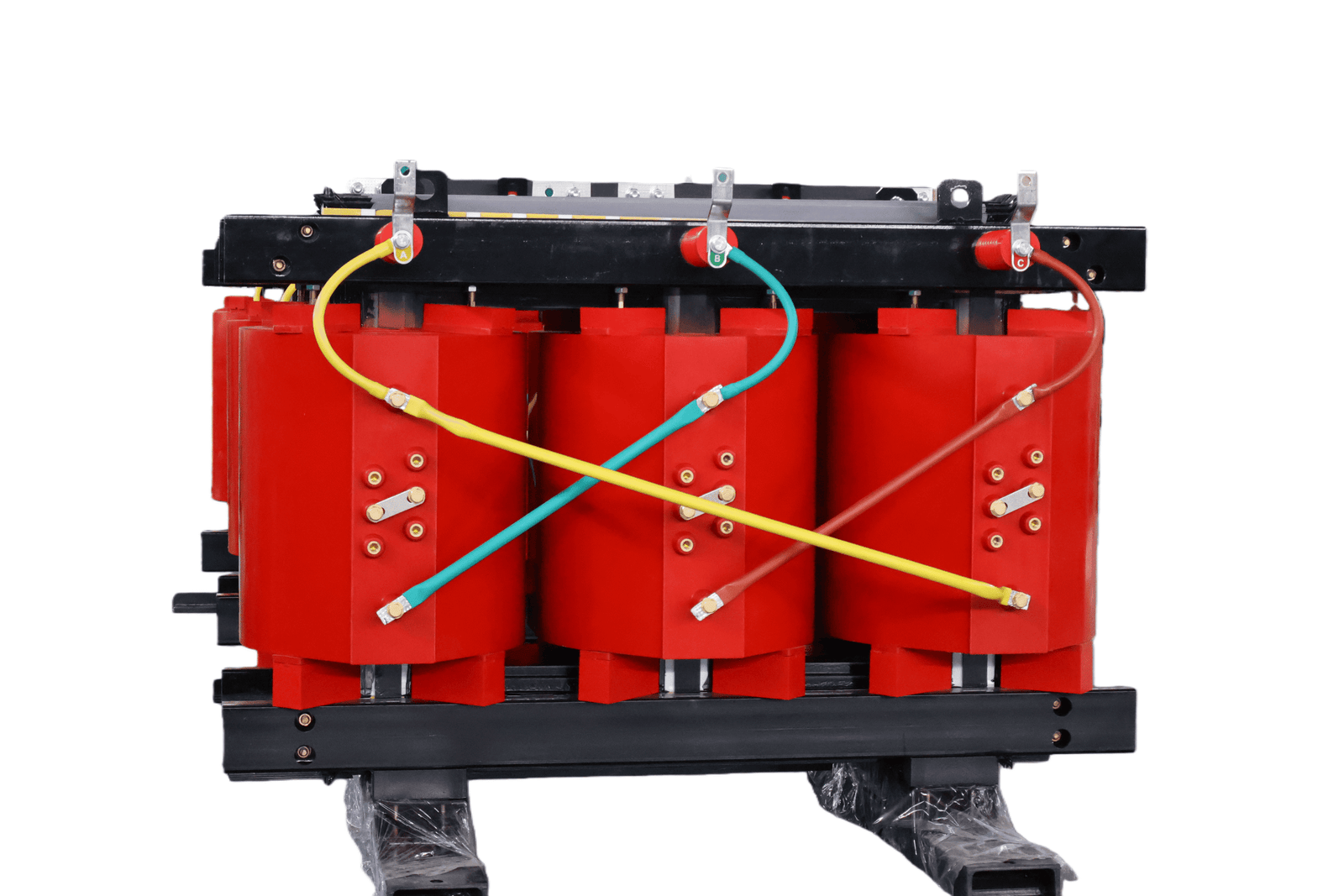

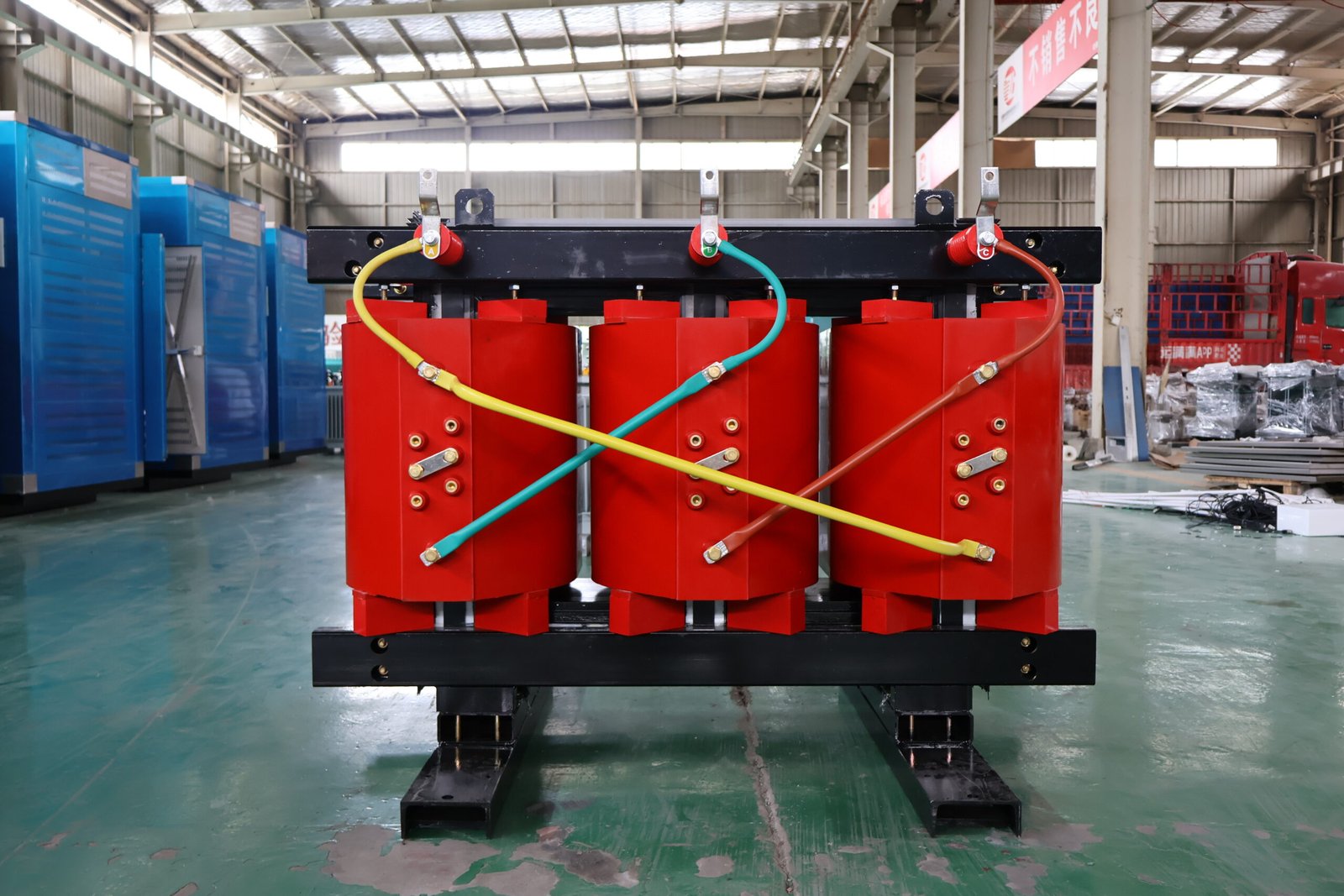

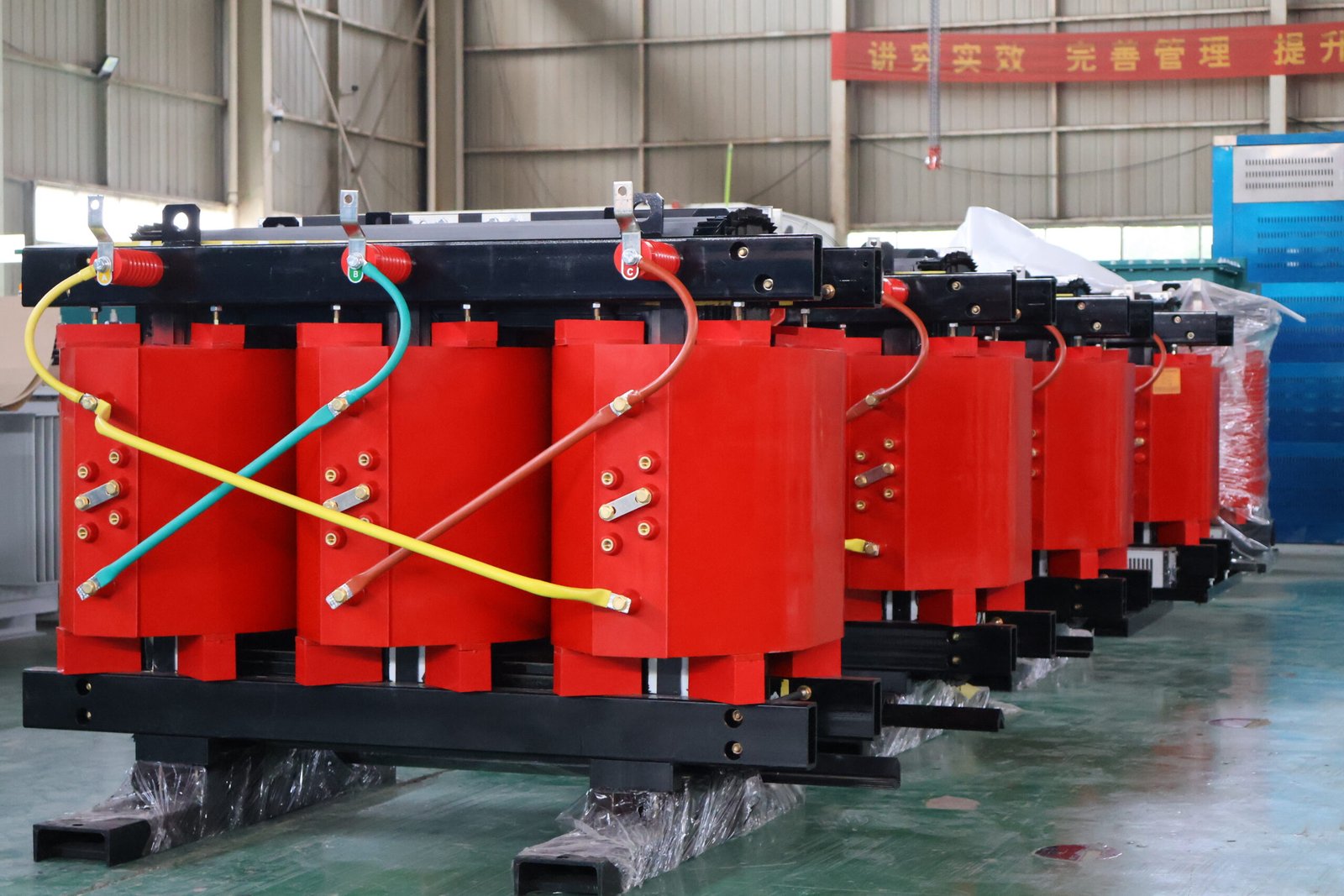

Dry Type Transformer

Dry-type transformers are oil-free, eco-friendly and highly safe power distribution units. Adopting vacuum epoxy resin casting technology, they deliver excellent insulation performance, reliable flame retardant and explosion-proof properties, pollution-free operation and maintenance-free service. Compared with traditional oil-immersed transformers, dry-type transformers completely avoid risks of oil leakage, fire and explosion, making them well suited for indoor installation, densely populated areas, high-end municipal projects and new energy power applications.

For project selection, customized parameters and quotation inquiries, please share your application scenario, required capacity and voltage specifications. We will deliver a professional technical solution and factory quotation within 12 hours.

Product Introduction

Thanks to its high safety, environmental friendliness and stable performance, this series of dry-type transformers is widely used in high-standard power distribution projects worldwide:

Commercial & Civil Buildings: Shopping malls, office buildings, hotels, residential communities and high-end villas
Public Infrastructure: Hospitals, schools, subways, airports and railway stations
Industrial Production: Factory workshops, manufacturing, chemical, pharmaceutical and food industries
New Energy Industry: Solar power stations, wind farms and energy storage power stations
High-tech Field: Data centers, communication base stations and laboratory power distribution systems
Urban Power Grid Engineering: Indoor distribution rooms, urban community transformer boxes and municipal power grid renovation projects

Specification and model	Rated Capacity (kVA)	Connection Symbol	Frequency	Cooling Type	running-light current
30 KVA Dry Type Transformer	30	Yyn0 Dyn11	50/60Hz	ONAN (Natural Air Cooled)	<4%
50 KVA Dry Type Transformer	50
75 KVA Dry Type Transformer	75
100 KVA Dry Type Transformer	100
150 KVA Dry Type Transformer	150
225 KVA Dry Type Transformer	225
300 KVA Dry Type Transformer	300
500 KVA Dry Type Transformer	500
750 KVA Dry Type Transformer	750
1000 KVA Dry Type Transformer	1000
1500 KVA Dry Type Transformer	1500
2000 KVA Dry Type Transformer	2000
2500 KVA Dry Type Transformer	2500
3000 KVA Dry Type Transformer	3000

Product Feature

Environmental Impact: Due to the lack of oil, there is no risk of oil leakage into the environment, which can contaminate soil and water sources. This feature aligns with modern environmental conservation efforts and regulatory requirements.
Safety: The most significant advantage of dry-type transformers is their safety feature. Since there is no flammable fluid like oil, the risk of fire and explosion is significantly reduced. This characteristic makes them suitable for indoor installations and locations where oil spills could pose a danger.
Maintenance: Dry-type transformers require less maintenance than oil-filled transformers. There is no need for regular oil sampling and replacement, which simplifies the maintenance routine and reduces downtime.
Insulation: The insulating material used in dry-type transformers must be capable of withstanding high temperatures and electric stresses. Materials such as Class H and Class F insulations are commonly used to enhance reliability.
Customization: Manufacturers can customize dry-type transformers to meet specific requirements, such as varying voltages, capacities, and installation environments.
Noise Level: Dry-type transformers typically operate at lower noise levels compared to oil-immersed transformers because there is no oil to create bubbling and gurgling sounds during operation.
Temperature Rise: The temperature rise in dry-type transformers is generally higher than in oil-immersed ones due to the lack of a cooling medium. Therefore, they often require more careful consideration of ventilation and cooling.
Overall Cost: Although the initial cost of a dry-type transformer might be higher than that of an oil-immersed transformer, the savings on maintenance and potential environmental cleanup costs can offset this over the lifespan of the product.

Quotation ahd Inquiry

To provide you with exclusive customized solutions and accurate factory quotations, please share the following project information. A general project description is acceptable if you do not have professional technical parameters:

Specific application scenario (new energy, building construction, industry, rail transit, mining, etc.)

Required rated capacity, voltage level and target market (50Hz / 60Hz)

Installation environment (indoor / semi-outdoor / harsh working conditions)

Purchase quantity, expected delivery cycle and special certification requirements

Professional model selection is not required! Simply inform us of your project requirements, and our senior electrical engineers will provide free one-on-one model matching, parameter customization and accurate factory quotations.
